DAG-A Type Consumer Axial Pump
DAG-A Type Consumer Axial Pump High Pressure Car Washer Reciprocating Piston Pump 206Bar 2.5GPM 9.4L/min Ceramic coating precision grinded Triplex Plunger Pump for Consumer Purpose Washing Machine
Consumer Axial Pump

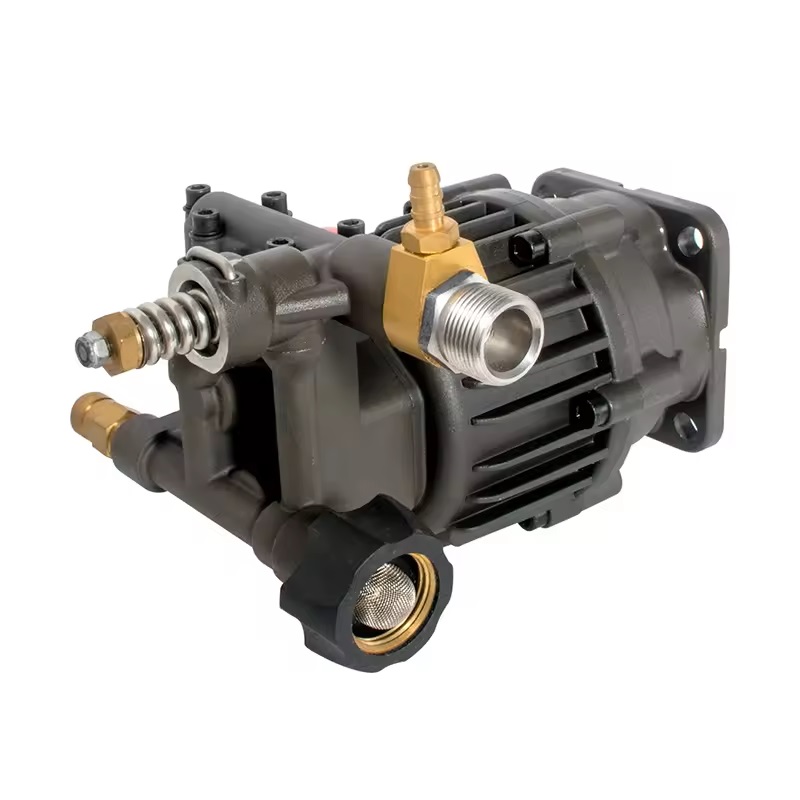

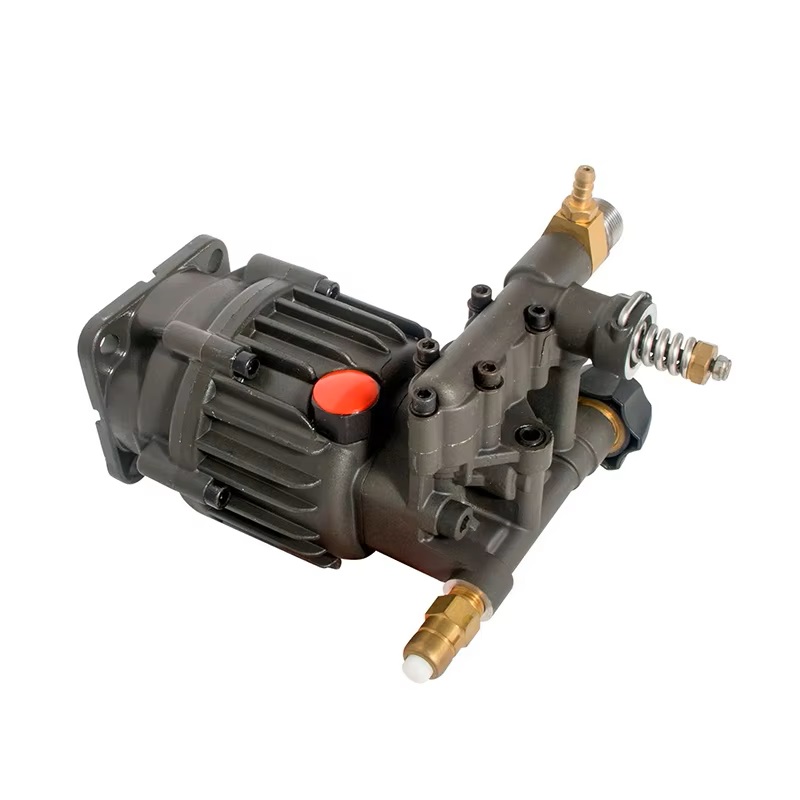

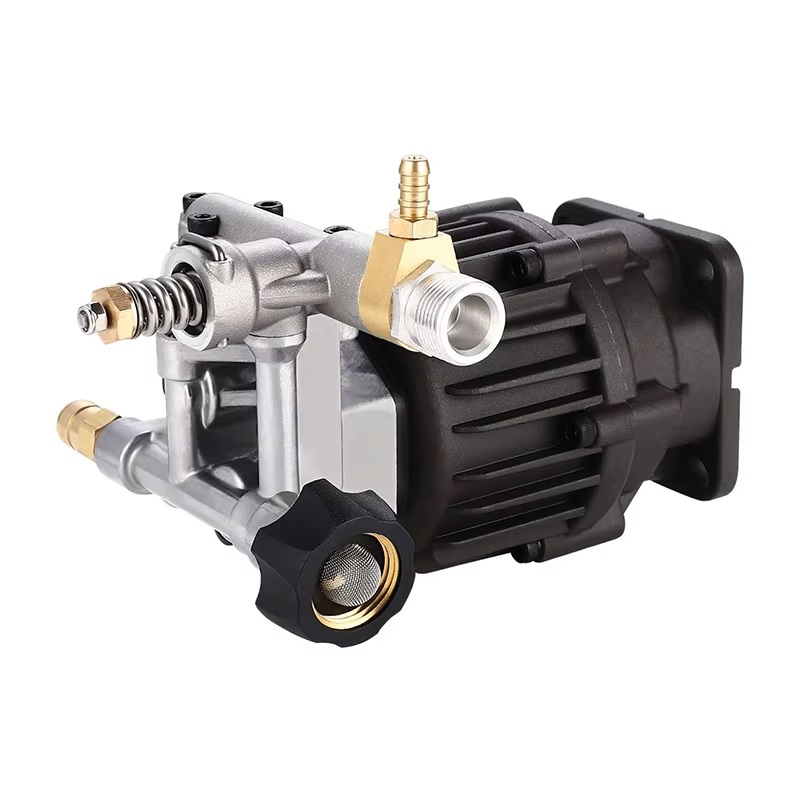

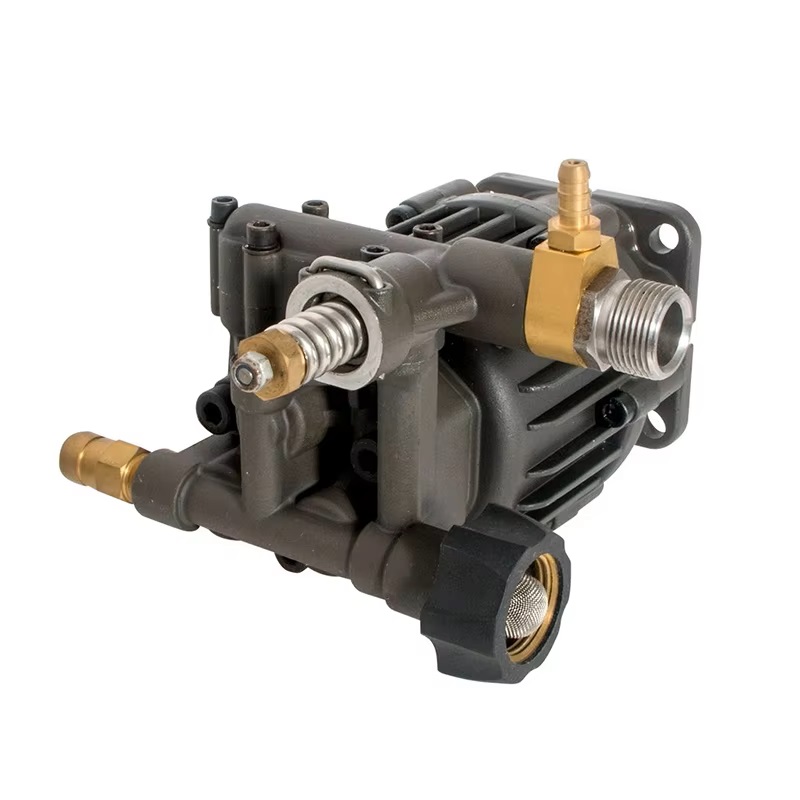

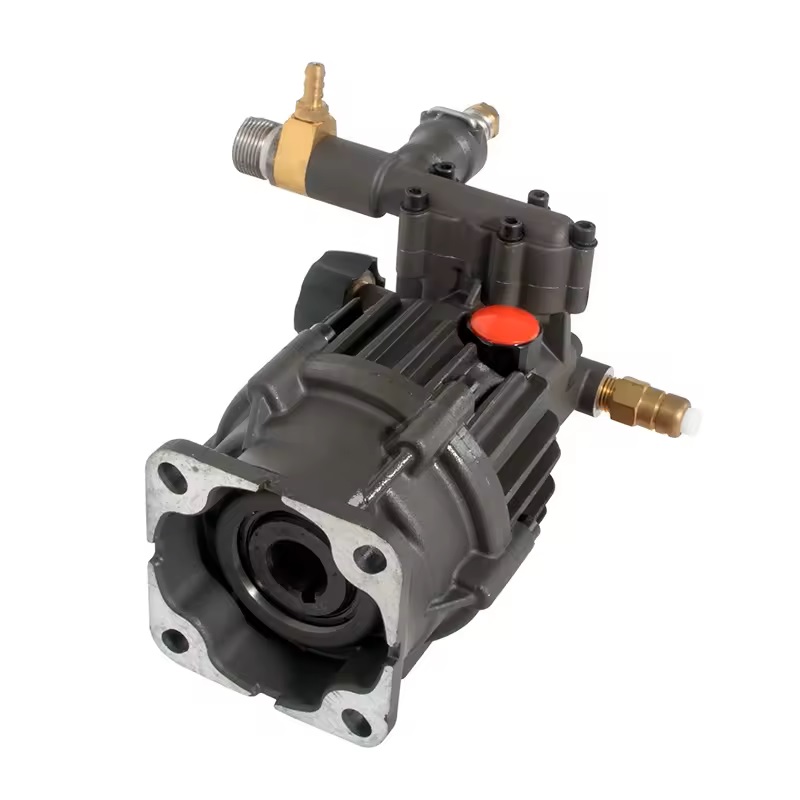

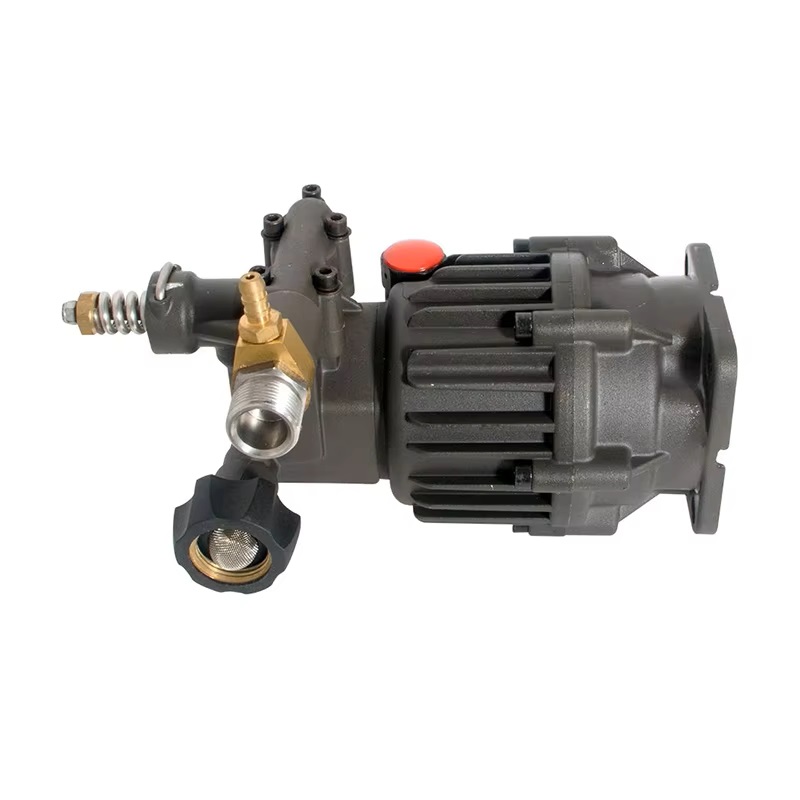

DAG-A consumer axial pump is a compact fluid delivery and pressure-boosting device that generates pressure by driving the plungers through the rotation of a swashplate. It is suitable for applications such as home cleaning, small-scale washing, long-distance water irrigation, and high pressure misting. The pump offers stable pressure, low operating noise, small size, light weight, high pressure, and high power density. It can be driven by standard electric motors and gasoline engines, with a flow rate range of 5–20 L/min. The hydraulic end is available in either die-cast aluminum alloy or forged brass, with a pressure range of 3–20 MPa.
TECHNICAL DATA
| Manifold: | Brass forged |
| Housing: | Die-cast aluminum alloy, anodized |
| Wobble Plate: | Forged steel alloy |
| Plunger: | Ceramic coating, precision grinded |
| Sealing: | U type, high-low dual pressure packing |
| Bearing: | Dual thrust bearing |
| Unloader: | Integrated with manifold |
| Unloader Port: | Inlet 3/4" (BSP or NH), Outlet M22 |
| Oil Bath Capacity: | 120ml |
| Oil Type: | 15W/40 Non-Detergent |
| Water Inlet Pressure: | 0-50psi/3.5bar |
| Max Inlet Water Temp. | ≤ 50°C/122°F |
SPECIFICATION
MODEL: DAG-12082A
| Max Flow(GPM, LPM) | 2.5, 9.4 | |
| Max Pressure(PSI, BAR) | 3000, 206 | |
| Power Input(HP) | 6.5 | |
| Power Speed(RPM) | 3400 | |
| Weight(KG) | 3.2 | |
| Shipping Size(CM) | 25x22.5x20 | |
MODEL: DAG-13075A
| Max Flow(GPM, LPM) | 2.7, 10.1 | |
| Max Pressure(PSI, BAR) | 2500, 172 | |
| Power Input(HP) | 6.5 | |
| Power Speed(RPM) | 3400 | |
| Weight(KG) | 3.2 | |
| Shipping Size(CM) | 25x22.5x20 | |

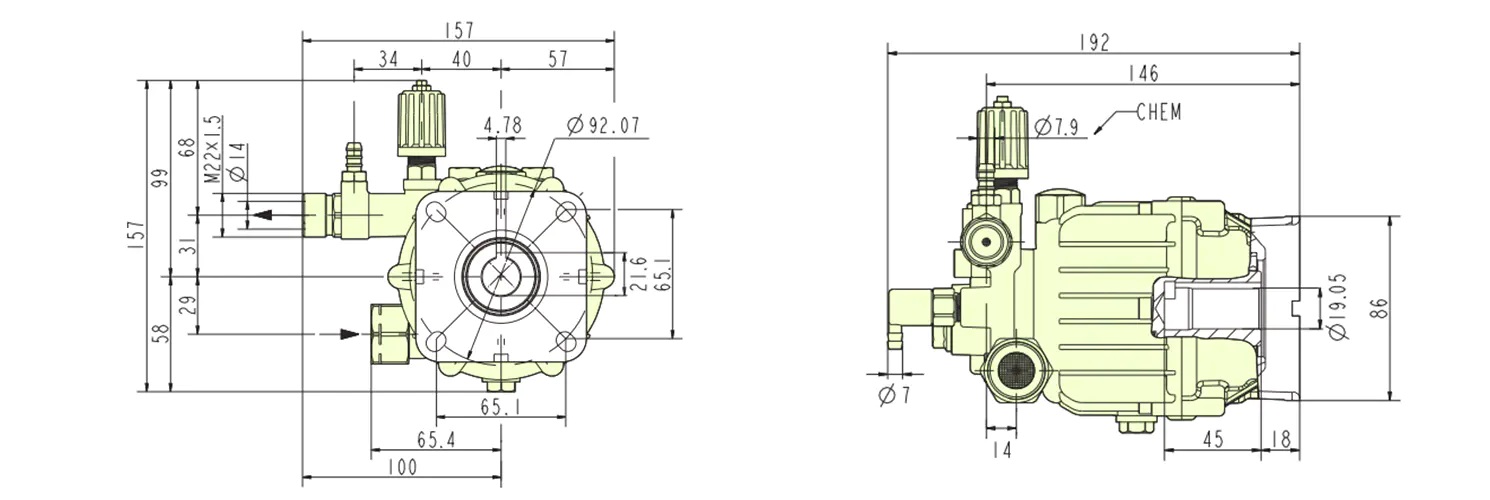

DIMENSION
COMPONENTS
 |
 |
 |
|
MANIFOLD Brass Forged |
HOUSING Aluminum Alloy |
WOBBLE PLATE Forged Steel Alloy |
 |
 |
 |
|
BEARING Thrust Bearing |
PLUNGER Coating Ceramic |
SEALING U Type Dual Seal |
APPLICATIONS
 |
 |
 |
| PRESSURE WASHING | FOG MAKING | HOT WATERAPPLICATION |
 |
 |
 |
| HIGH PRESSURECOOLANT | WATER TREATMENT | WATER JETCUTTING |
